99.95% high temperature cold rolled tungsten boat price for vacuum thermal evaporation
1.Type of Tungsten vacuum thermal evaporator Boat

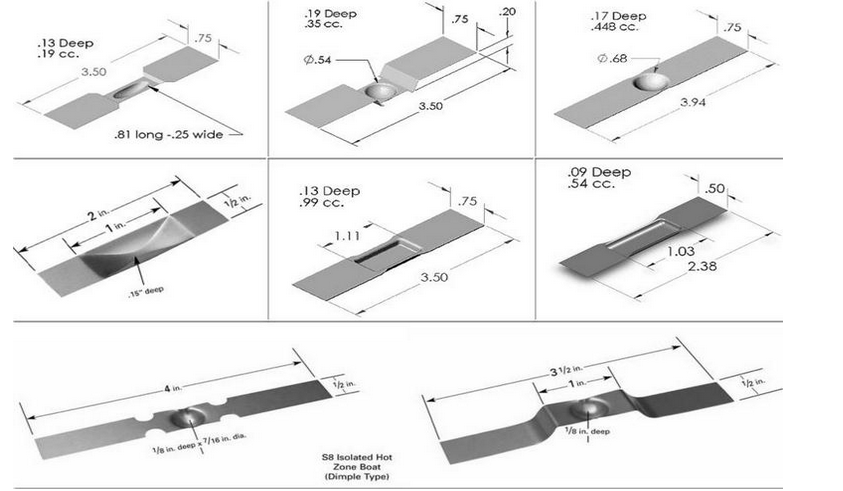

2.Dimensions of tungsten boat
| Name | Symbol of products | Size(mm) | Trough Length (mm) | Trough Depth (mm) |
tungsten boat
Special size can be customized! | HZ210--00PG | 0.2*10*100 | 50 | 2 |
| HZ215--00PG | 0.2*15*100 | 50 | 7 | |
| HZ216--03PG | 0.2*25*118 | 80 | 10 | |
| HZ308--00YG | 0.3*8*100 | 50 | 2 | |
| HZ310--00PG | 0.3*10*100 | 50 | 2 | |
| HZ310--01PG | 0.3*10*70 | 40 | 1.8 | |
| HZ312--00YG | 0.3*12*100 | 50 | 2 | |
| HZ313--02YG | 0.3*13*49 | 33 | 3.3 | |
| HZ315--03YG | 0.3*15*100 | 50 | 7 | |
| HZ316--00PG | 0.3*16*100 | 50 | 4 | |
| HZ318--03YG | 0.3*18*100 | 40 | 3.5 | |
| HZ514--00YG | 0.5*14*100 | 50 | 2.6 | |
| HZ515--00PG | 0.5*15*100 | 50 | 2.6 |

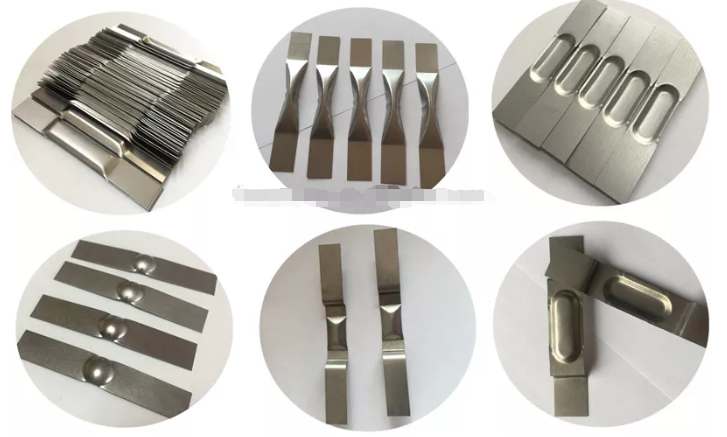

Popular boat:
Application：
1.Metallizing, Electron-beam Spraying ,sinteting annealing in reducing atmosphere in electronics.
2. Military and light industries.
3.Evaporate small lengths of wire or to evaporate materials.

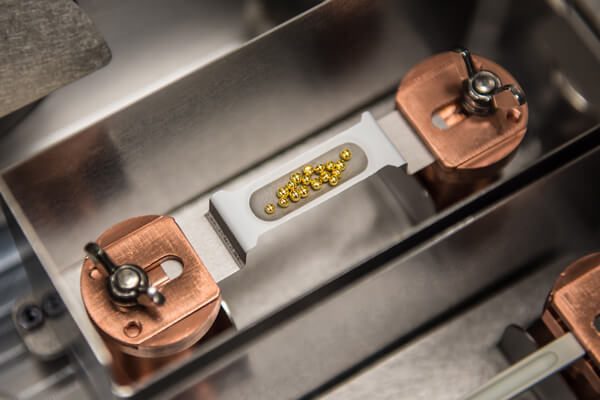

4.Tungsten boat is ideal for use in small evaporation systems.
5.Tungsten boats sources are used for the vacuum evaporation of materials.
